Reduction Gear Box :
Single/Double/Multi - Stage Spur / Single Helical / Double Helical Gear Unit Of High Quality Steel With Spherical Roller Bearings In Rigid Cast Iron / Steel Fabricated Body And Pressure Lubricating System. |
| |
|
|
|
|
High Speed Flywheel :
Material : Cast Iron / Steel Complete With Shaft. Spherical Roller Bearings And Pedestals.
Weight : Cast. Iron - 3 To 12 M.T And Steel 2 To 6 M.T |
| |
|
|
 |
|
Pusher Machine :
Heavy Duty Steel Fabricated Frame, Pressure Screw Having Buttress Threads. Gun Metal Pressure Nut And Bushes. Thrust Beatings, Lubricating System, Reduction Gear Box And Flexible Couplings Etc. |
| |
|
|
 |
|
Rolls Assembly :
Cast Steel Roller Bearing Chocks. Roller Beatings Mounted On Roll Neck With Universal Couplings And Spindles For Bar And Section Mills Range Suitable For 200 Mm To 460 Mm Mills. |
| |
|
|
 |
|
Ejector Machine :
Cast Iron Housing Fitted On Steel Fabricated Frame
With Rollers Running On Antifriction Bearings With
Chocks. Worm Type Reduction Gear Box Bottom Trolley Sliding Mechanism, Heavy Screw With Gun Metal Bushes Etc. |
| |
|
|
 |
|

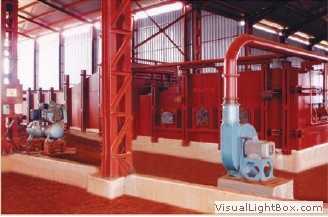

Re-Heating Furnace :
Oil Fired Pusher Type Single/Double Zone Re-Heating Furnace Having Capacity From 3 Tons To 30 Tons Per Hour. |
|
|
| |
|
|
 |
|
Pinion Gear Box :
2-High / 3-High / 4-High Pinion Gear Box With Gears Of En 9 / En 24 Steel Having Spur / Single / Double Helical Teeth With Spherical Roller Bearings In Rigid Cast Iron Vertically Splinted / Steel Fabricated Body And Pressure Lubricating System.
Range : 180 Mm To 550 Mm Centers |
| |
|
|
 |
|
Mill Stand :
2-High / 3-High / 4-High Mill Heavy Duty Cast Iron/Steel Fabricated Top Closed/Open Type With Fibre Bearing / Rolling Bearing System And Its Complete Fittings With Base Plates. Range: 180 Mm To 550 Mm |
| |
|
|
 |
|
Cassette Mounted Roller Guide Box :
Cast Steel Box With Leaf Sprigs, Rocker Rollers, Entry Guides Lubricating And Cooling System. Used For Guiding Of Most Symmetrical Sections E.G. Rounds, Ovals , Squares, Flats, Etc. |
| |
|
|
 |
|
Rotary Flying Shear :
Steel Fabricated Main Frame, With Cast Iron Housing, Two Cutters With Shaft Running On Bearings By Means Of Gears, Housing Swing 60° By Pneumatic Cylinder. |
| |
|
|
 |
|
Twisting Machine :
Steel Fabricated Frame With Multi Speed Gear Box Directa/ - Belt Drive System, Movable Trolley Chucks With Gripping Jaws Etc. Capacity : 8 Mm To 36 Mm Bars |
| |
|
|
 |
|

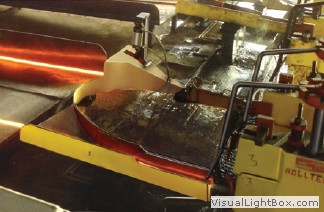

Repeaters :
Steel Fabricated Oval And Square Repeaters With Screw Down Mechanism, Stands And Pipe Nozzles And Suitable For Billet/ Ingot Base Re-Rolling Mills. |
|
|
|
|
|
|
|
| |
|
|
